晶导微品牌肖特基二极管符号和压降

发布时间:2022-08-04 16:32:44 浏览:24次 责任编辑:晶导微电子

  肖特基二极管自身功耗小,效率很高,反向恢复时间极短,所以适宜工作在高频率状态下;目前常见的肖特基最高结温为150℃-175℃(结温越高表示产品抗温特性越好)

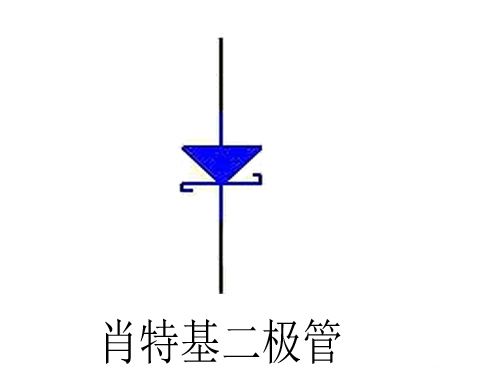

  肖特基二极管符号:


  肖特基二极管压降:


  一,1A肖特基二极管压降:


  1N5819,电流1A,压降0.55V,电压40V


  SR160,电流1A,压降0.7V,电压60V


  SR1100,电流1A,压降0.85V,电压100V


  二,2A肖特基二极管压降:


  SR240,电流2A,压降0.55V,电压40v


  SR260,电流2A,压降0.7V,电压60v


  SR280,电流2A,压降0.85V,电压80v


  SR2100,电流2A,压降0.85V,电压100v


  三,3A肖特基二极管压降:


  SR340,电流3A,压降0.55V,电压40v


  SR360,电流3A,压降0.7V,电压60v


  SR380,电流3A,压降0.85V,电压80v


  SR3100,电流3A,压降0.85V,电压100v


  四,5A肖特基二极管压降:


  SR540,电流5A,压降0.55V,电压40v


  SR560,电流5A,压降0.7V,电压60v


  SR580,电流5A,压降0.85V,电压80v


  SR5100,电流5A,压降0.85V,电压100v


  五,8A肖特基二极管压降:


  SR840,电流8A,压降0.55V,电压40v


  SR860,电流8A,压降0.7V,电压60v


  SR880,电流8A,压降0.85V,电压80v


  SR8100,电流8A,压降0.85V,电压100v


  六,10A肖特基二极管压降:


  SR1040,电流10A,压降0.55V,电压40v


  SR1060,电流10A,压降0.7V,电压60v


  SR1080,电流10A,压降0.85V,电压80v


  SR10100,电流10A,压降0.85V,电压100v


  七,12A肖特基二极管压降:


  12SQ040,电流12A,压降0.55V,电压40v


  12SQ045,电流12A,压降0.55V,电压60v


  12SQ060,电流12A,压降0.7V,电压80v


  12SQ080,电流12A,压降0.8V,电压100v


  12SQ100,电流12A,压降0.8V,电压100v


  八,15A肖特基二极管压降:


  15SQ040,电流15A,压降0.55V,电压40v


  15SQ045,电流15A,压降0.55V,电压60v


  15SQ060,电流15A,压降0.7V,电压80v


  15SQ080,电流15A,压降0.8V,电压100v


  15SQ100,电流15A,压降0.8V,电压100v


  九,1A肖特基二极管压降:


  SS14,电流1A,压降0.55V,电压40V


  SS16,电流1A,压降0.7V,电压60V


  SS18,电流1A,压降0.85V,电压80V


  SS110,电流1A,压降0.85V,电压100V


  十,2A肖特基二极管压降:


  SS24,电流2A,压降0.55V,电压40V


  SS26,电流2A,压降0.7V,电压60V


  SS28,电流2A,压降0.85V,电压80V


  SS210,电流2A,压降0.85V,电压100V


  十一,3A肖特基二极管压降:


  SS34,电流3A,压降0.55V,电压40V


  SS36,电流3A,压降0.7V,电压60V


  SS38,电流3A,压降0.85V,电压80V


  SS310,电流3A,压降0.85V,电压100V


  十二,5A肖特基二极管压降:


  SS54,电流5A,压降0.55V,电压40V


  SS56,电流5A,压降0.7V,电压60V


  SS58,电流5A,压降0.85V,电压80V


  SS510,电流5A,压降0.85V,电压100V


  十三,8A肖特基二极管压降:


  SS84,电流8A,压降0.55V,电压40V


  SS86,电流8A,压降0.7V,电压60V


  SS88,电流8A,压降0.85V,电压80V


  SS810,电流8A,压降0.85V,电压100V


  十四,10A肖特基二极管压降:


  SS1040,电流10A,压降0.55V,电压40V


  SS1060,电流10A,压降0.7V,电压60V


  SS1080,电流10A,压降0.85V,电压80V


  SS10100,电流10A,压降0.85V,电压100V


  十五,1A肖特基二极管压降:


  K14,电流1A,压降0.55V,电压40V


  K16,电流1A,压降0.7V,电压60V


  K18,电流1A,压降0.85V,电压80V


  K110,电流1A,压降0.85V,电压100V


  十六,2A肖特基二极管压降:


  K24,电流2A,压降0.55V,电压40V


  K26,电流2A,压降0.7V,电压60V


  K28,电流2A,压降0.85V,电压80V


  K210,电流2A,压降0.85V,电压100V


  十七,10A肖特基二极管压降:


  MBR1040CT,电流10A,压降0.65V,电压40V


  MBR1045CT,电流10A,压降0.65V,电压45V


  MBR1060CT,电流10A,压降0.72V,电压60V


  MBR1080CT,电流10A,压降0.85V,电压80V


  MBR10100CT,电流10A,压降0.85V,电压100V


  MBR10150CT,电流10A,压降0.92V,电压150V


  MBR10200CT,电流10A,压降0.92V,电压200V


  十八,20A肖特基二极管压降:


  MBR2040CT,电流20A,压降0.65V,电压40V


  MBR2045CT,电流20A,压降0.65V,电压45V


  MBR2060CT,电流20A,压降0.72V,电压60V


  MBR2080CT,电流20A,压降0.85V,电压80V


  MBR20100CT,电流20A,压降0.85V,电压100V


  MBR20150CT,电流20A,压降0.92V,电压150V


  MBR20200CT,电流20A,压降0.92V,电压200V


  十九,30A肖特基二极管压降:


  MBR3040CT,电流30A,压降0.65V,电压40V


  MBR3045CT,电流30A,压降0.65V,电压45V


  MBR3060CT,电流30A,压降0.72V,电压60V


  MBR3080CT,电流30A,压降0.85V,电压80V


  MBR30100CT,电流30A,压降0.85V,电压100V


  MBR30150CT,电流30A,压降0.92V,电压150V


  MBR30200CT,电流30A,压降0.92V,电压200V
